MerCruiser R MR Alpha I Power Tilt and Trim
Or click below to return to the following:
Inboard/Outboard Section (I/O)
Please Select from the following options:


Bell Housing & Transom Upper Drive Shaft Housing Lower Gearcase
Power Tilt & Trim

*Please double check the casting numbers on the cylinder. There are two different lengths available.*

MerCruiser R MR Alpha I Power Tilt and Trim

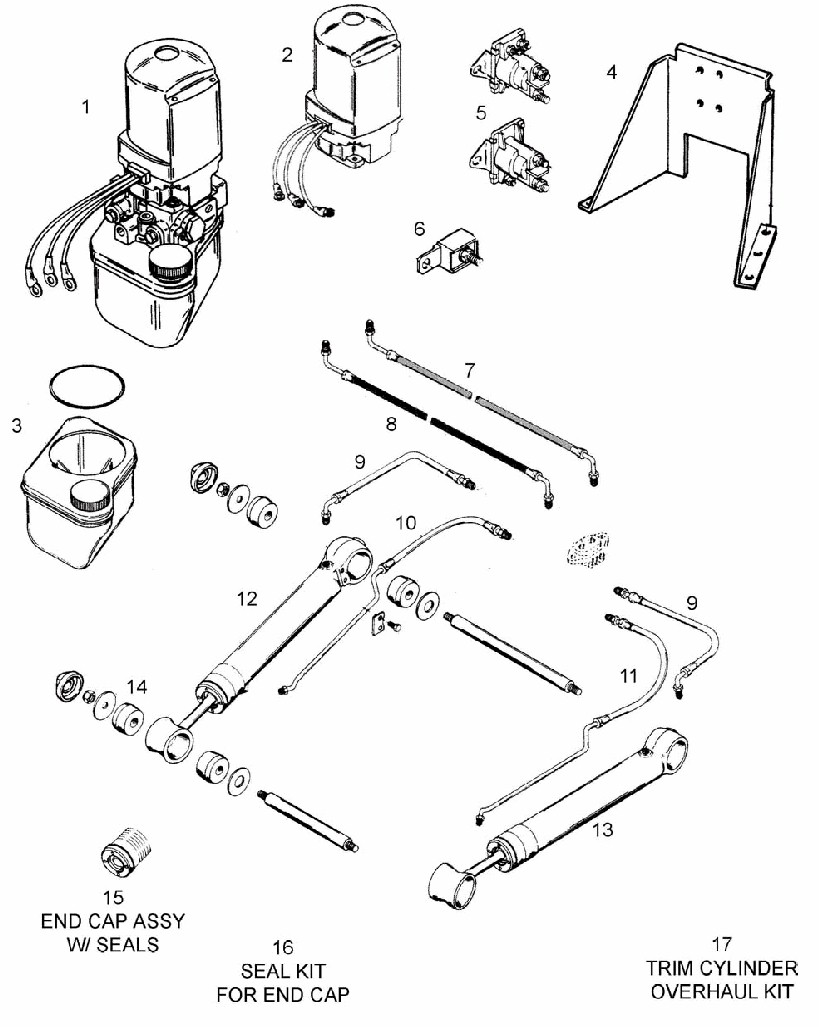

SEE REFERENCE PICTURE BELOW! Fits all 1983-1990.
Reference Number

see chart below

 Type OE# Part# Click here to view product, price, or cart.gif (2032 bytes)
1 Complete trim pump and bracket 14336A28 T1088MSK

1 Complete Trim pump 14336A17 T1088M

2 Trim motor 17649T T1087M

3 Trim reservoir, single bolt bottom mounted 18525A 1 RSV01

3 Trim reservoir, four bolt top mounted 883166A2 RSV02

4 Stainless pump bracket only 42419A 1 1088B

5 Solenoid 89-96158T 5817

6 Fuse 110 amp 88-79023A10 1088F

7 Hydraulic line grey 32-861128 63048

8 Hydraulic line black 32-861127 63047

9 Trim line (short) up 32-99904 64000

9 Trim line (short) up, MC1 TR TRS 32-86036 64036

10 Trim line port down, cylinder casting # 98703 & 98703-1 32-864588 64588

10 Trim line port down, cylinder casting # 14035-1, long 32-864959 64959

11 Trim line stbd down, cylinder casting # 98704 & 98704-1 32-864589 64589

11 Trim line stbd down, cylinder casting # 14034-1, long 32-864960 64960

12 Trim cylinder stbd, 16 3/16" tube 14035A 3 68202

13 Trim cylinder port, 16 3/16" tube 14034A 3 68203

12 Trim cylinder stbd, 15 9/16" tube 98703A 3 68208

13 Trim cylinder port, 15 9/16" tube 98704A 3 68209

14 Trim bushing 4 ok 23-9929T 2702-4

15 End cap kit with seals, may NOT for OE trim rams 806191T 18-2373

16 End cap o-ring kit 25-87400A 2 18-2649

17 Trim cyl overhaul kit 87399A 2 68212
