MerCruiser 7.4L 454 / 502 V8 Fuel System
SEE REFERENCE PICTURE BELOW!
see chart below
| MerCruiser 7.4L 454 / 502 V8 Fuel System | ||
| Or click below to return to the following: | ||
| Inboard/Outboard Section (I/O) | ||
| Please Select from the following options: | ||
| Electrical System | - | Exhaust / Cooling System |
| Seawater Pumps | Engine & Fuel System | Internal Engine |

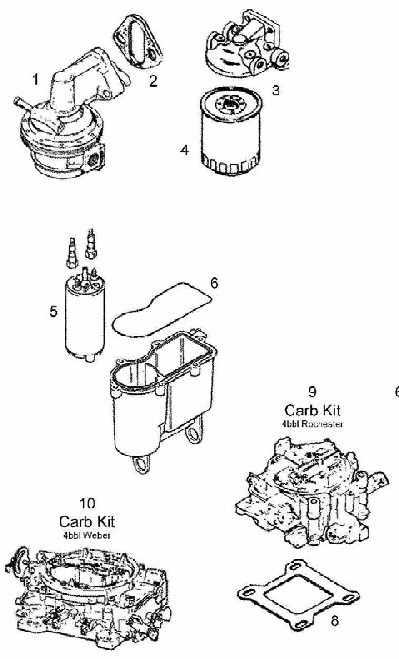

MerCruiser 7.4L 454 / 502 V8 Fuel System SEE REFERENCE PICTURE BELOW! |
||||
| Reference Number see chart below |
Type | OE# | Part# | Click here to view product, price, or |
| 1 | Fuel Pump M60315 | 362077A 1 | 18-7283 | |
| 2 | Fuel pump gasket | 27-34213 | 69213 | |
| 3 | Water seperating fuel filter | 35-802893Q4 | 7852 | |
| 4 | Replacement fuel filter | 35-802893Q | 7845 | |
| 5 | VST fuel pump | 808505 | 8090 | |
| 6 | VST O-ring | 808500 | 9086 | |
| 8 | Carb mounting gasket 4bbl | 27-41610 | 69610 | |
| 9 | Carb kit 4bbl Q-jet | 823426A 1 | 50426 | |
| 10 | Carb kit 4 bbl weber 809064 | 809064 | 18-7748 | |
| Not shown | Oil filter, remote mount | 35-883702Q | 72885 | |
| Not shown | High capacity oil filter | 35-16595Q | 72595 | |
