MerCruiser Bravo I II III Power Tilt and Trim

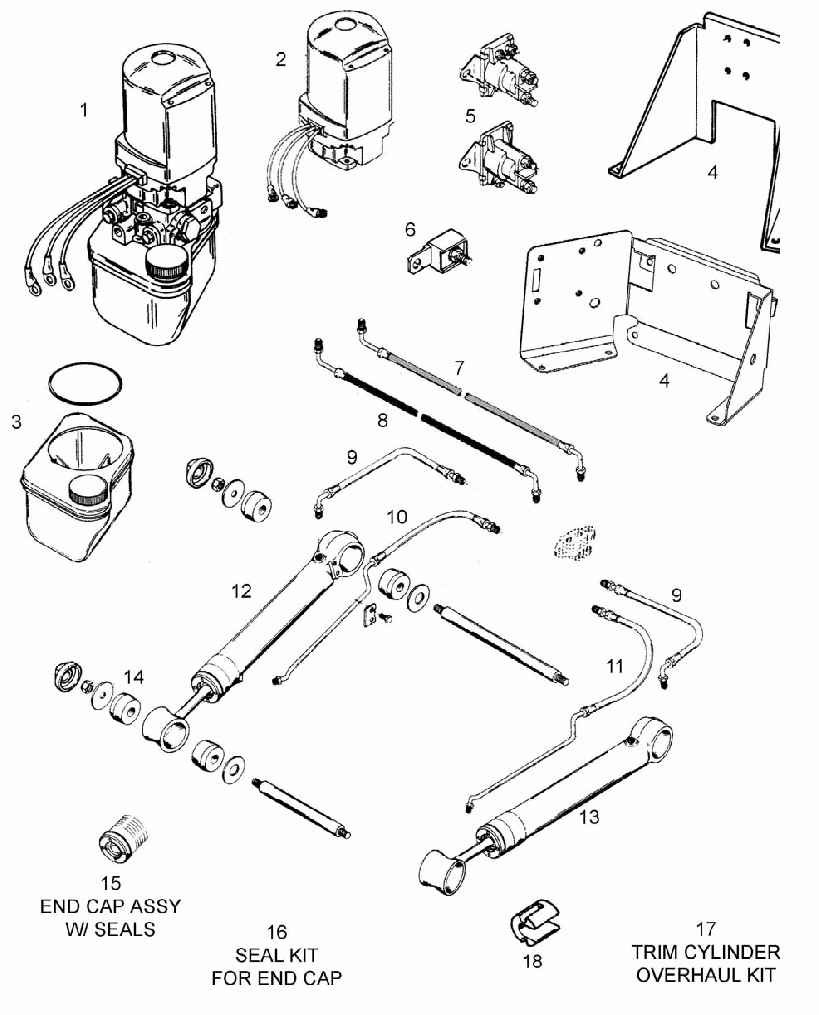

SEE REFERENCE PICTURE BELOW! .
see chart below
| MerCruiser Bravo I II III Power Tilt and Trim |
| Or click below to return to the following: |
| Inboard/Outboard Section (I/O) |
| Please Select from the
following options:
|
MerCruiser Bravo I II III Power Tilt and Trim SEE REFERENCE PICTURE BELOW! . |
||||
| Reference Number see chart below |
Type | OE# | Part# | Click here to view product, price, or |
| 1 | Complete trim pump and bracket | 14336A28 | T1088MSK | |
| 1 | Complete Trim pump | 14336A17 | T1088M | |
| 2 | Trim motor | 17649T | T1087M | |
| 3 | Trim reservoir, single bolt bottom mounted | 18525A 1 | RSV01 | |
| 3 | Trim reservoir, four bolt top mounted | 883166A2 | RSV02 | |
| 4 | Stainless pump bracket only, early | 42419A 1 | 1088B | |
| 4 | Stainless pump bracket only, late | 862548A 1 | 62548 | |
| 5 | Solenoid | 89-96158T | 5817 | |
| 6 | Fuse 110 amp | 88-79023A10 | 1088F | |
| 7 | Hydraulic line grey | 32-861128 | 63048 | |
| 8 | Hydraulic line black | 32-861127 | 63047 | |
| 9 | Trim line (short) up | 32-99904 | 64000 | |

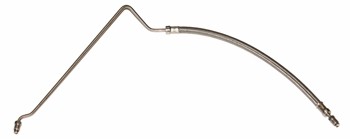

| 10 | Trim line port down, cylinder casting # 98703 & 98703-1 | 32-864588 | 64588 | |
| 11 | Trim line portdown, cylinder casting # 98704 & 98704-1 | 32-864589 | 64589 | |
| 12 | Trim cylinder port | 98704A 26 | 68206 | |
| 13 | Trim cylinder stbd | 98703A 26 | 68207 | |
| 14 | Bushing | 23-807073 | 4288 | |
| 15 | End cap kit with seals, may NOT for OE trim rams | 806191T | 18-2373 | |
| 16 | End cap o-ring kit | 25-87400A 2 | 18-2649 | |
| 17 | Trim cyl overhaul kit | 87399A 2 | 68212 | |
| 18 | Anode, aluminum Bravo ram | 888758Q01 | 70190 | |
| 18 | Anode, magnesium Bravo ram | 888761Q01 | 70190m | |
| 18 | Anode, aluminium Bravo I | 888758Q01 | 70758 | |
| 18 | Anode, aluminium Bravo II & III | 888761Q01 | 70761 | |
