MerCruiser Alpha Gen II Power Tilt and Trim

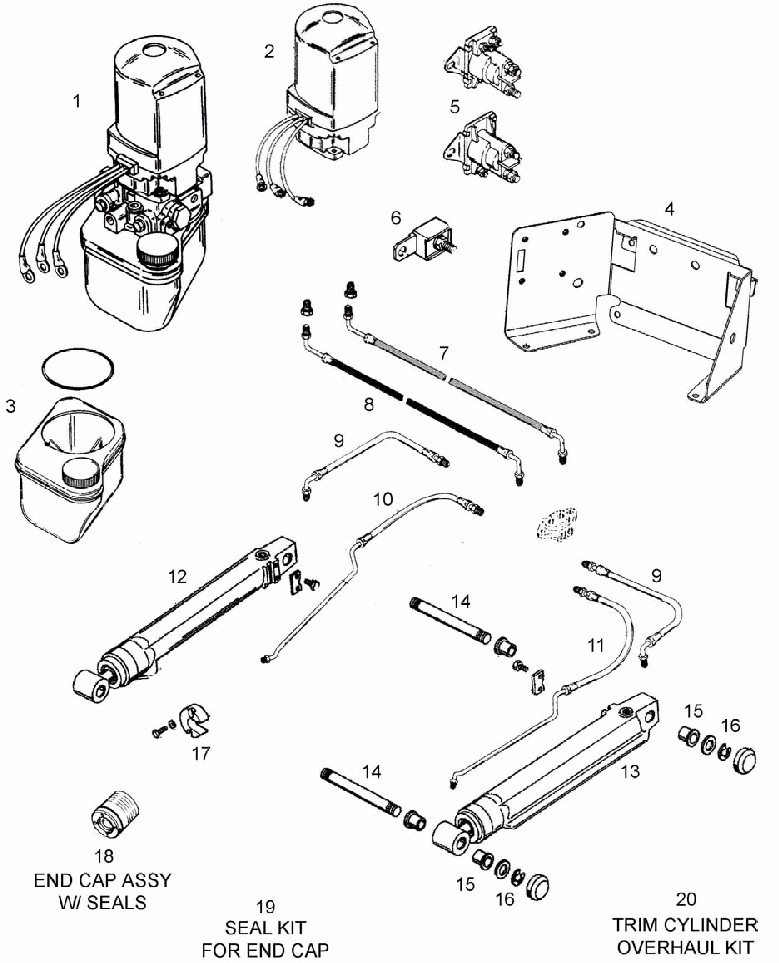

SEE REFERENCE PICTURE BELOW! Fits all 1991-later
see chart below
| MerCruiser Alpha Gen II Power Tilt and Trim |
| Or click below to return to the following: |
| Inboard/Outboard Section (I/O) |
| Please Select from the
following options:
|
MerCruiser Alpha Gen II Power Tilt and Trim SEE REFERENCE PICTURE BELOW! Fits all 1991-later |
||||
| Reference Number see chart below |
Type | OE# | Part# | Click here to view product, price, or |
| 1 | Complete Trim pump | 14336A17 | T1088M | |
| 2 | Trim motor | 17649T | T1087M | |
| 3 | Trim reservoir, four bolt top mounted | 883166A2 | RSV02 | |
| 4 | Stainless pump bracket only | 862548A 1 | 62548 | |
| 5 | Solenoid | 89-96158T | 5817 | |
| 6 | Fuse 110 amp | 88-79023A10 | 1088F | |
| 7 | Hydraulic line grey | 32-861128 | 63048 | |
| 8 | Hydraulic line black | 32-861127 | 63047 | |
| 9 | Trim line (short) up | 32-99904 | 64000 | |
| 10 | Trim line port down, cylinder casting # 14035-1, long | 32-864959 | 64959 | |
| 11 | Trim line stbd down, cylinder casting # 14034-1, long | 32-864960 | 64960 | |
| 12 | Trim cylinder port | 815935A 7 | 68204 | |
| 13 | Trim cylinder stbd | 815954A 7 | 68205 | |
| 14 | Pivot Pin | 17-815953 | 18-2395 | |
| 15 | Bushing | 23-815950 1 | 18-2341 | |
| 16 | E-ring | 53-815949 | 18-2345 | |
| 17 | End cap Anode | 806189A 1 | 70189 | |
| 17 | End cap Anode Magnesium | 806189A 1 | 70189M | |
| 18 | End cap kit with seals, may NOT for OE trim rams | 806191T | 18-2373 | |
| 19 | End cap o-ring kit | 25-87400A 2 | 18-2649 | |
| 20 | Trim cyl overhaul kit | 87399A 2 | 68212 | |
| not shown | Drive mounting lock nut | 11-859116 | 59116 | |
