Chrysler / Force Outboard Motor Gasket Kit 1691-1

Chrysler / Force Outboard Motor Gasket Kit 40-50HP 1988 B, C, and D Model 2 Cylinder.

Force..50hp..1988..A,..B,..C......1989..A
Kit..#: 1691..1

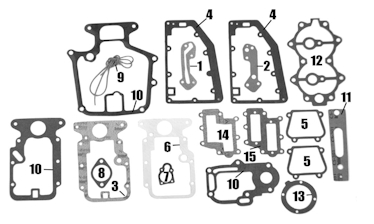

#,  Qty in kit, OEM.#,  Description

1, 1, * 27..F93472 1,  cylinder drain cover gasket
2, 1, * 27..F93748 1, reed plate gasket
3, 1, 279..2 27..F307279 2, upper exhaust gasket
4, 2, 0962* 27..F40154 4, exhaust port plate gasket
5, 2, 1236 27..F40223 port cover gasket
6, 1, 279..1 27..F40279 1, lower exhaust gasket
7, 1, * 27..F97067 thermostat gasket
8, 1, 1250 27..F85906 carb. gasket
9, 1, SP1 184122 1, seal
10, 1, 475..1 820475A 1, powerhead adapter gasket
11, 1, * transfer port gasket
12, 1, * head  cover gasket
13, 1, * bearing cage gasket
14, 1, * carb adapter gasket
15, 1, * deflector plate gasket
16, 1, 3856.. F201529-1 head gasket is not included in gasket kit.
17, 1, 658.... F658529 head gasket is not included in gasket kit.
*.. not available separately, only as part of the gasket kit.
