Chrysler / Force Outboard Motor Section Check Out

Chrysler / Force Outboard Motor Gasket Kit 2874-1

Chrysler / Force Outboard Motor Gasket Kit 3 Cylinder with Head Gasket . 70 HP 1991 - 1998.

 Single Carburetor Only

OE#: 27-820724A 2

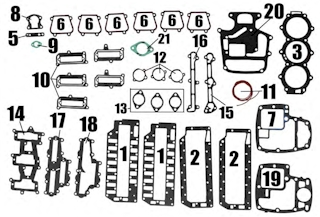

image #, quantity in kit, part number, description

1, 2, 023 8190231, Exhaust Plate (2Req) Gasket

2, 2, 1243 F851541, Exhaust Plate (2Req) Gasket

3, 1, 369 820438, Cylinder Head Gasket

4, 2, 9733 819733, Carb Adapter Gasket

5, 1, 1487 987691, Fuel Pump Gasket

6, 6, 1236 F40223, Bypass Cover Gasket

7, 1, 1246 F852792, Powerhead Base Gasket

8, 1, 0854 F476067, Thermostat Cover Gasket

9, 1, 1249 F85762, Bypass Cover Gasket

10, 3, 1245 F851682, Carb Adapter Gasket

11, 1, SP1 N/A, Spaghetti Seal48" Gasket

12, 3, 1265 F481836, Carb to Air Box Gasket

13, 3, 1250 828925, Carb Base Gasket

14, 1, 1244 F851591, Carb to Reed Adapter Gasket

15, 1, 0861 F857482, Cylinder Drain Reed Gasket

16, 1, 1247 F854722, Cylinder Drain Cover Gasket

17, 1, 9113 819113, Reed Gasket

18, 1, 9114 8191141, Carb to Reed Adapter Gasket

19, 1, 3814 8193814, Powerhead Base Gasket

20, 1, 0493 8190493, Powerhead Adapter Gasket

21, 1, S9240 3240358, Carb Gasket
