There are two charts on this page. Scroll down

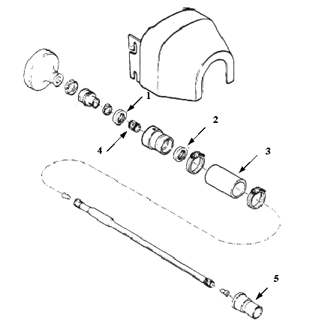

Sea Doo Lower Unit


Sea-Doo Lower Unit
Ref #

Description

OE #

Part #


1, 2

Front Thru Hull Seal

293-200-025

009-730

3

Rubber Boot

272-000-081

003-105

4

Carrier Bearing

293-350-001

010-228

5

Thru Hull Repair Insert

292-000-075

2002

6

Driveshaft (Drive Shaft) Rubber Boot

272-000-001

003-100

7

Seal Carrier

272-000-024

003-115

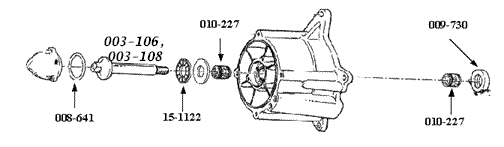

Description

Application

OE #

Part #


Oil Reservoir O-Ring

all Sea Doo

293-200-011

008-641

Jet Pump O-Ring

Sea Doo 650

293-200-013

008-642

Pump Shaft Seal

all Sea Doo

293-200-025

009-730

Caged Pump Bearing

all Sea Doo

293-350-001

010-227

Jet Pump Shaft

all Sea Doo

271-00-291

003-106

Jet Pump Shaft

early 951cc

-

003-108

Thrust Bearing

580 / 650

-

010-2281

Thrust Bearing

720 / 800 / 951

-

010-2282

Thrust Washer



-

003-099
