Chrysler or Force Outboard Motor

Trim and Tilt Motor Section

**** No Returns on Electronic Parts... EXCHANGE Only: Return / Exchange Policy Click Here

or return to

Click   to view and compare all... Chrysler/Force Trim and Tilt motors
HP Year Wire

OEM Numbers this replaces

product #

 View Price, Part orForcei1.jpg (3670 bytes)
Wiring Harness Only.  Converts 2 Wire Motors to 3 Wire Applications. 84-826802A-1

8268

Trim Valve Body Chrysler / Force trim valve body. 4-line Connection replaces both types F694541

VB112

40 1992-1994 2 809885A1, 818903A1, 819762A4-A7, 819479A1, 819480A1, 81977A8-A9, 822870A1, 830250A3-T3, 832021A1-T4-A2-T2, 855654A1-T2, 19217A1-A5

6276

40 1995-1999 2 827675A1

6255

50 1991 2 809885A1, 818903A1, 819762A4-A7, 819479A1, 819480A1, 81977A8-A9, 822870A1, 830250A3-T3, 832021A1-T4-A2-T2, 855654A1-T2, 19217A1-A5

6276

50 1992-1994 2 809885A1, 818903A1, 819762A4-A7, 819479A1, 819480A1, 81977A8-A9, 822870A1, 830250A3-T3, 832021A1-T4-A2-T2, 855654A1-T2, 19217A1-A5

6276

50 1995-1999 2 827675A1

6255

70 1966-1972 3 449541-3, 455541

6216

70 1978-1979 3 449541-3, 455541

6216

70 1991-1995 2 809885A1, 818903A1, 819762A4-A7, 819479A1, 819480A1, 81977A8-A9, 822870A1, 830250A3-T3, 832021A1-T4-A2-T2, 855654A1-T2, 19217A1-A5

6276

75 1966-1972 3 449541-3, 455541

6216

75 1977-1981 3 449541-3, 455541

6216

75 1982-1984 3 449541-3, 455541

6216

75 1996-1999 2

809885A1, 818903A1, 819762A4-A7, 819479A1, 819480A1, 81977A8-A9, 822870A1, 830250A3-T3, 832021A1-T4-A2-T2, 855654A1-T2, 19217A1-A5

6276

85 1966-1972 3 449541-3, 455541

6216

85 1977-1981 3 449541-3, 455541

6216

85 1987-1989 2 820545, F694541-1

6212

85 L Drive 1989-1992 2 -

6231

90 1966-1972 3 449541-3, 455541

6216

90 1977-1986 3 449541-3, 455541

6216

90 1987-1990 2 820545, F694541-1

6212

90 1991-1994 2 820545, F694541-1

6212

90 1991-1994 2 809885A1, 818903A1, 819762A4-A7, 819479A1, 819480A1, 81977A8-A9, 822870A1, 830250A3-T3, 832021A1-T4-A2-T2, 855654A1-T2, 19217A1-A5

6276

90 1995-1997 3 824051

6276

90 1998-1999 2 -

6276

105 1966-1979 3 449541-3, 455541

6216

110 1966-1986 3 449541-3, 455541

6216

120 1966-1986 3 449541-3, 455541

6216

120 1987-1989 2 820545, F694541-1

6212

120 1990-1994 2 820545, F694541-1

6212

120 1990-1994 2 809885A1, 818903A1, 819762A4-A7, 819479A1, 819480A1, 81977A8-A9, 822870A1, 830250A3-T3, 832021A1-T4-A2-T2, 855654A1-T2, 19217A1-A5

6276

120 1995 - -

not available
120 1996-1997 3 -

6276

120 1998-1999 2 -

6276

125 1966-1986 3 449541-3, 455541

6216

125 1987-1989 2 820545, F694541-1

6212

135 1966-1972 3 449541-3, 455541 (all use 6216)

6216

135 1976-1979 3
140 1966-1986 3
150 1966-1975 3
150 1987-1994 2 820545, F694541-1

6212

150 1989-1994 2 809885A1, 818903A1, 819762A4-A7, 819479A1, 819480A1, 81977A8-A9, 822870A1, 830250A3-T3, 832021A1-T4-A2-T2, 855654A1-T2, 19217A1-A5

6276

Late model Force Outboard Motor O/B, Motor & Reservoir Only Replaces: 820545  ( 2 Wire )

6212

Motor & Reservoir only. Replaces: F17563, 17556, 17568, 17564. ( 3 Wire)

6216

Late Model Mercury/Force Motor,   25-50 HP, Replaces: 827675A1

6255

Late Model Mer/Mariner & Force Outboard Motor with Merc Lower Unit with Single Ram  2 Wire                     Replaces: 809885A 1 Motor

6276

Late Model Force Outboard Motor 2 Wire with Mercury Outboard Lower Unit and Single Ram Replaces:  809885A1 Same As ABOVE by GENERIC MANUFACTURER

PT496

Late Model Force Outboard Motor 3 Wire with Mercury Outboard Lower Unit and Single Ram Replaces: 824051

Same as above but has 3 wires

PT495

85 HP L Drive, 1989-1992

6231



Chrysler and Force Outboard Motor Trim and Tilt motors pictorial.
Late model Force Outboard Motor Trim Motor & Reservoir

6212

Late model Force Outboard Motor O/B, Motor & Reservoir Only Replaces: 820545  ( 2 Wire )

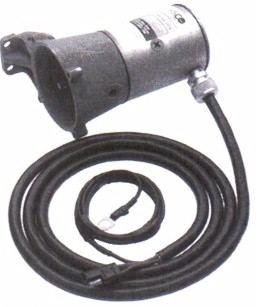

 Chrysler and Force Outboard Motor Trim and Tilt Motor

6216

Motor & Reservoir only. Replaces: F17563, 17556, 17568, 17564. ( 3 Wire)


Mercury / Mariner & Force Outboard Motor single ram trim Motor

6276, PT 498, Pt495 (3 Wire)

Late Model Mercury /Mariner & Force Outboard Motor 50-125HP with Merc lower Unit with single ram replaces:809885A 1, 2-Wire connection Hollow-hex shaft



 Mercury / Force 25-50 HP oval shaped trim Motor

6255

Late Model Mercury / Force 25-50 HP, Replaces: 827675A1


6276-1 Force Outboard Motor 3 Wire trim Motor

6276-1; Late model Force Outboard Motor 3 Wire with Mercury Outboard lower Unit and single ram.

 Mercury Outboard Motor wire harness for trim Motor

8268 Wiring Harness only. converts 3 Wire trim motors to two Wire applications
