MerCruiser 5.0 / 5.7L 305/350 V8 Engine and Fuel System
Or click below to return to the following:
Inboard/Outboard Section (I/O)
Please Select from the following options:
Electrical System Exhaust System Cooling System
Seawater Pumps



 Engine & Fuel System



MerCruiser 5.0 / 5.7L 305/350 V8 Engine and Fuel System

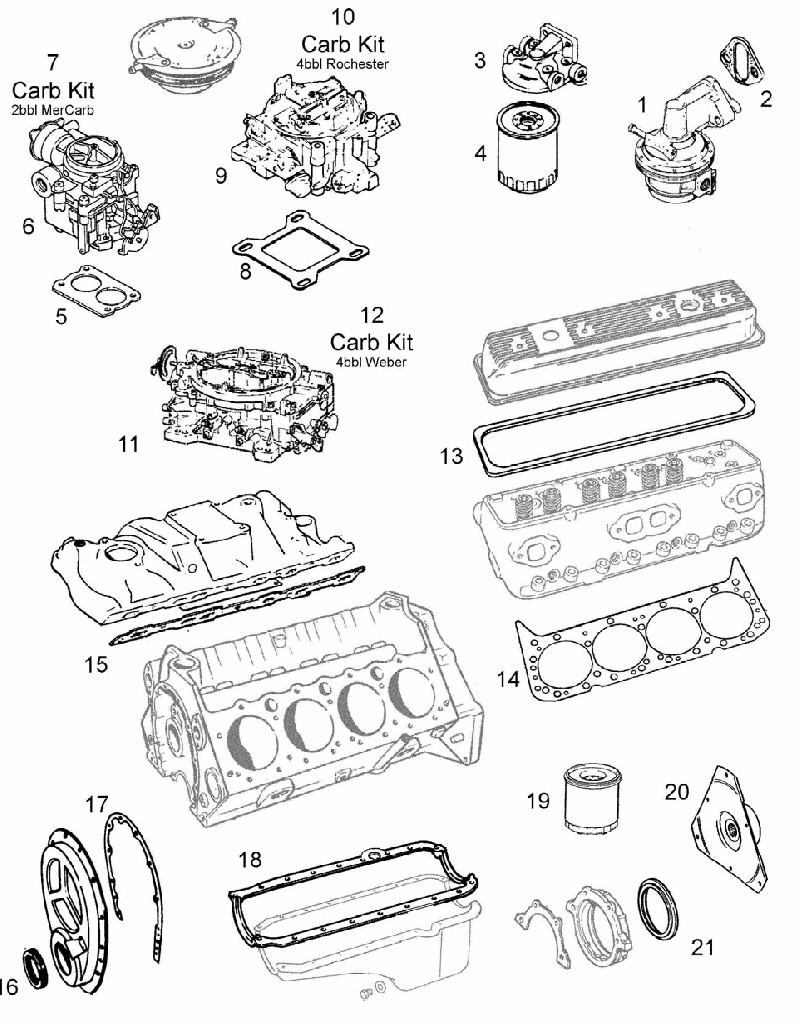

SEE REFERENCE PICTURE BELOW!
Reference Number

see chart below

 Type OE# Part# Click here to view product, price, or cart.gif (2032 bytes)
1 Fuel Pump M60315 362077A 1 18-7284

2 Fuel pump gasket 27-34213 69213

3 Water seperating fuel filter 35-802893Q4 7852

4 Replacement fuel filter 35-802893Q 7845

5 Carb mounting gasket 2bbl 27-807982 1 69982

6 2bbl MerCarb - -

7 Carb kit 2bbl MerCarb 3302-804844 50844

8 Carb mounting gasket 4bbl 27-41610 69610

9 4bbl MerCarb - -

10 Carb kit 4bbl Q-jet 823426A 1 50426

11 4 bbl weber carburator - -

12 Carb kit 4 bbl weber 809064 809064 18-7748

12 Carb kit 4 bbl weber 809065 809065 18-7749

13 Valve cover gasket set, rim bolts 27-11999 55637

13 Valve cover gasket set, center bolts 27-17467 19541

14 Head Gasket, 5.0L 27-75611 59340

14 Head Gasket, 5.7L 27-75611 59312

15 Intake gasket set 27-17145 59115

16 Timing cover seal 26-97335 79160

17 Timing cover gasket 27-14250 17871

18 Oil pan gasket 27-13865 16529

19 Oil filter, remote mount 35-883702Q 72885

19 High capacity oil filter 35-16595Q 72595

20 Engine coupler 18643A5 18-2323

not shown below Engine coupler kit 18643A7 18-2175

21 Rear main seal - -

not shown below VST fuel pump 827682 8090

not shown below VST O-ring 808500 9086

not shown below Head set, for rim bolt valve covers; includes head gaskets, valve cover gaskets, distributor gasket, and valve stem seals 59230 59230
